32 DVS Ember-Glo™

The 32 DVS Deluxe is an efficient way to heat homes and living spaces up to 1,500 square feet. This mid-sized insert features a big ceramic glass viewing area and the incredible Ember-Fyre® II Burner. This model offers you the choice of high definition detailed log sets and a wide variety of designer faces. The 32 DVS Deluxe comes standard with our most popular options, namely, adjustable rear Accent Lights, a 180 CFM convection fan, Ember-Glo™ ember bed lighting and the GreenSmart® Remote Control.

Specifications

Primary Specs
Heating Capacity : Up to 1,500 Square Feet
Maximum BTU Input : 31,000 (NG/LP)
Minimum BTU/HR Input : 10,300 (NG), 9,600 (LP)
Steady State Efficiency (High) : Up To 85.11% (NG), 87.44% (LP)
P4 Canadian Efficiency : 75.22% (NG), 77.93% (LP)
Dimensions : Height 19-5/8” (Front) 17″ (Back)
Width 26-3/8” (Front) 17-5/8″ (Back)
Depth 14-1/2”
Glass Viewing Area : Ceramic Glass, 24-1/4″ W x 12-3/4″ H= 309 Sq. In.
Weight : 280 Pounds
Additional Specs
Venting : Top or Rear
Fan : Standard
Burner System : Ember-Fyre™

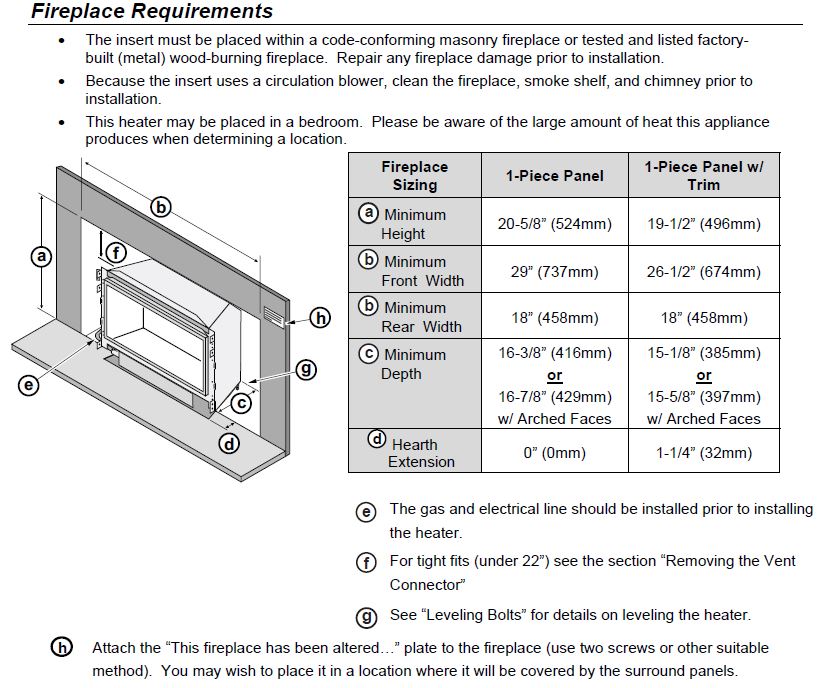

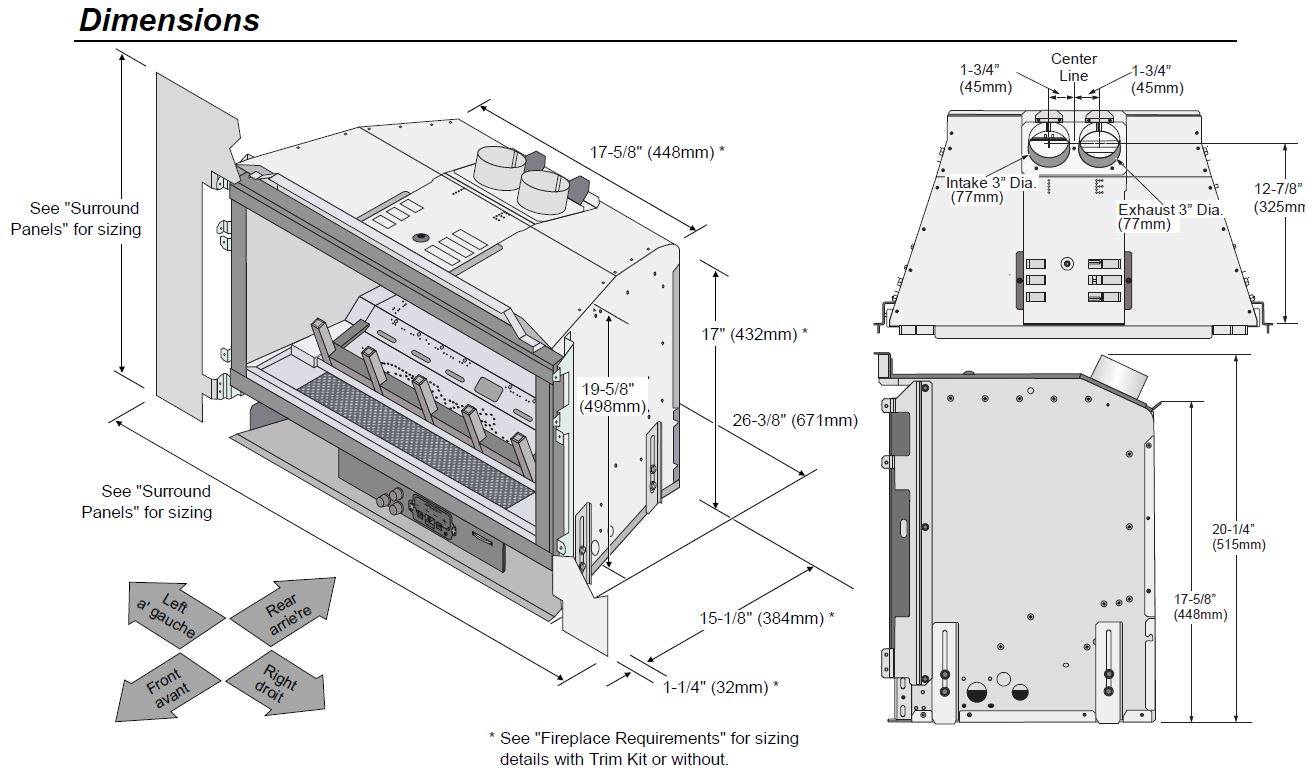

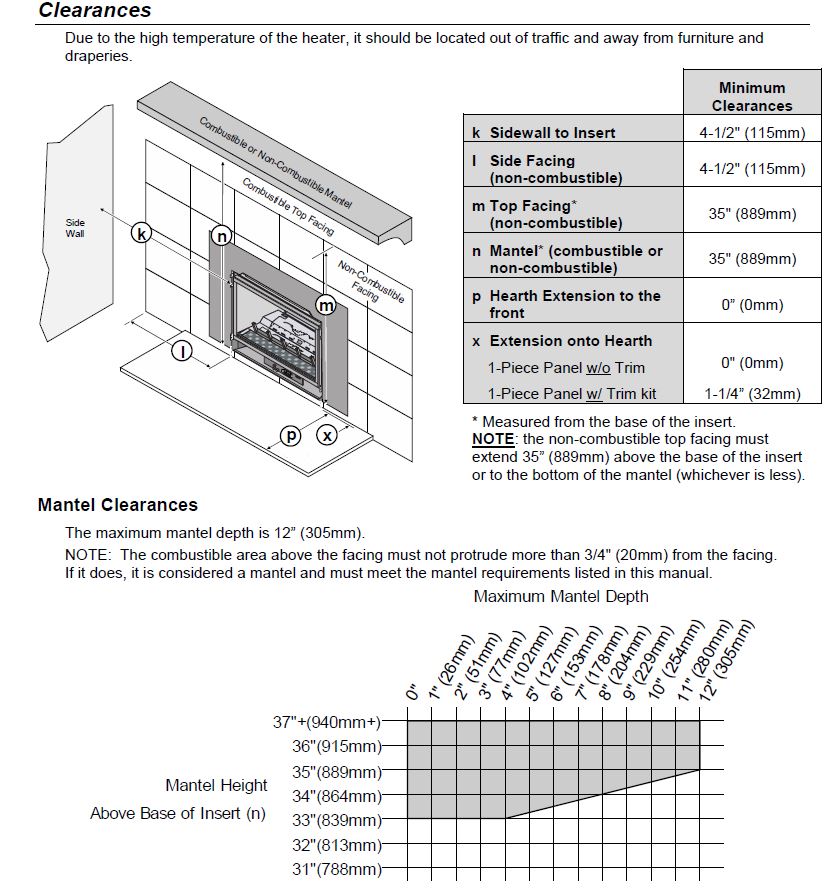

Installation & Dimension Drawings
