34 DVL Deluxe Ember-Glo™

The DVL is our most popular gas insert and can heat up to 2,000 square feet. This model features a generous ceramic glass viewing area and your choice of high definition Classic Oak, Birch or Driftwood log sets. This Deluxe insert comes fully loaded with realistic Ember-Glo™ ember bed lighting, the GreenSmart® Remote Control, Accent Lights and a 180 CFM convection fan.


Primary Specs
Heating Capacity : Up to 2,000 Sq. Ft.
Maximum BTU/HR Input : 40,000 (NG/LP)
Minimum BTU/HR Input : 13,500 (NG) 9,600 (LP)
Glass Viewing Area : Ceramic Glass, 27″ W x 16-1/8″H, 437 Sq. In.
Dimensions : Height: 23-7/8” 607mm (Front), 21-3/8” 508mm (Back),
Width: 31-1/2” 801mm (Front) 20″ 508mm (Back),
Depth: 14-1/2” 369mm
Additional Specs
Steady State Efficiency (High) : Up To 82.17% (NG), 83.81% (LP)
P4 Canadian Efficiency : 72.81% (NG), 70.30% (LP)

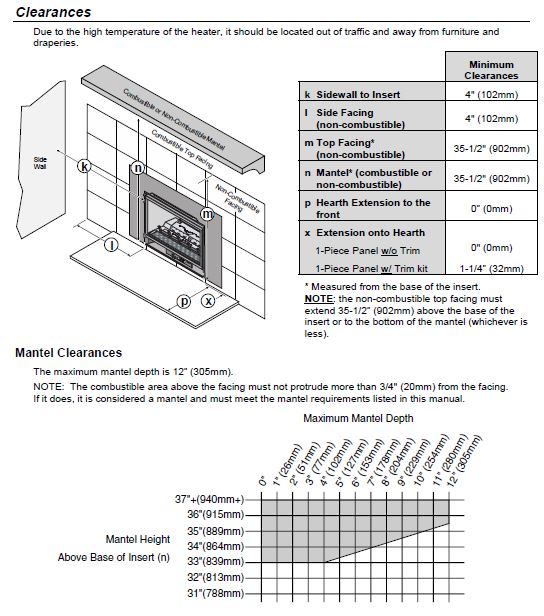

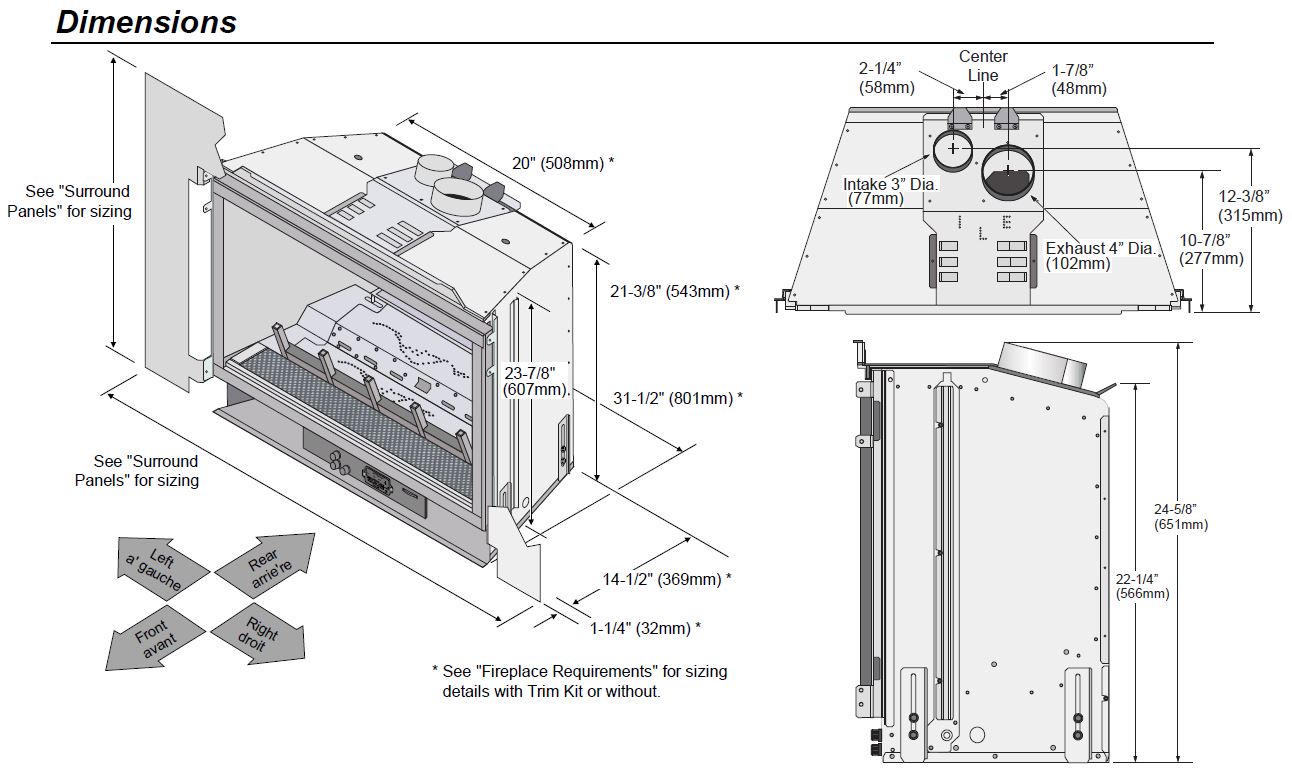

Installation & Dimension Drawings
