430 Deluxe Ember-Glo™

The 430 is a beautiful insert that is ideal for providing supplemental heat to homes or living spaces up to 1,500 square feet. Featuring 430 square inches of ceramic glass, this model has a larger fireviewing area than most inserts its size. The ceramic glass extends down to the hearth to offer a “clean face” look that resembles a traditional masonry fireplace. This model features Ember-Glo™ ember bed lighting and your choice of high definition Classic Oak or Birch Log Sets. This Deluxe insert features the GreenSmart® Remote Control, top Accent Light and a 180 CFM convection fan.

Specifications

Primary Specs
Heating Capacity : Up to 1,500 Square Feet
Maximum BTU Input : 31,000 (NG/LP)
Minimum BTU/HR Input : 9,900 (NG), 7,500 (LP)
Steady State Efficiency (High) : Up To 85.55% (NG), 86.50% (LP)
P4 Canadian Efficiency : 73.77% (NG), 74.73% (LP)
Dimensions : 19-1/2” H, 29-1/2” W (Front), 21” W (Back), 15-1/2”D
Glass Viewing Area : Ceramic Glass, 23″ W x 16″ H, 368 Sq. In.

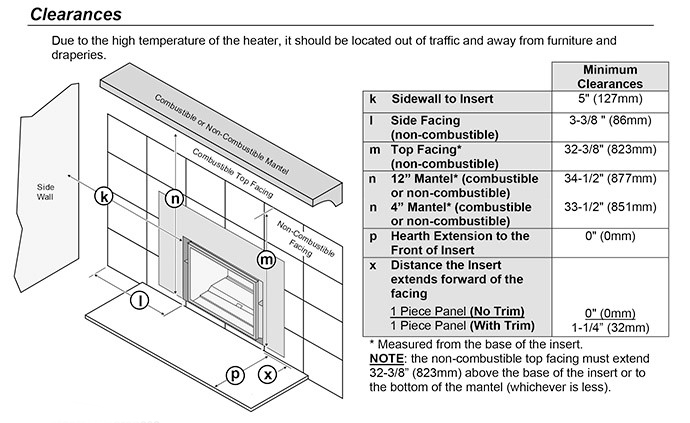

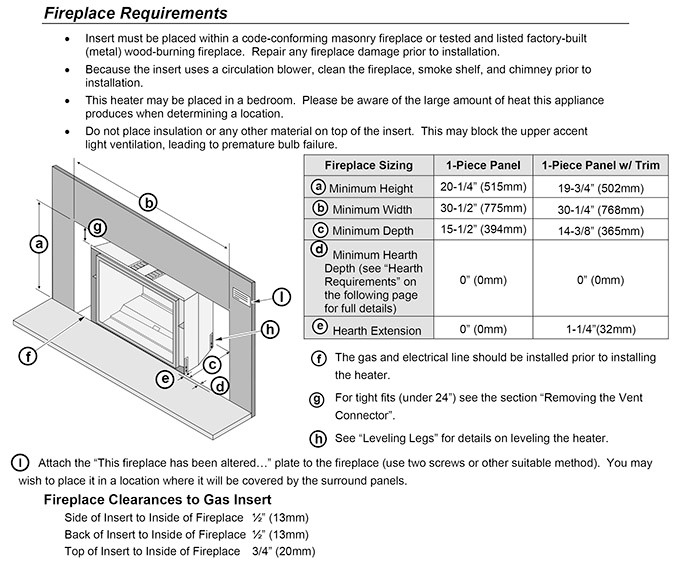

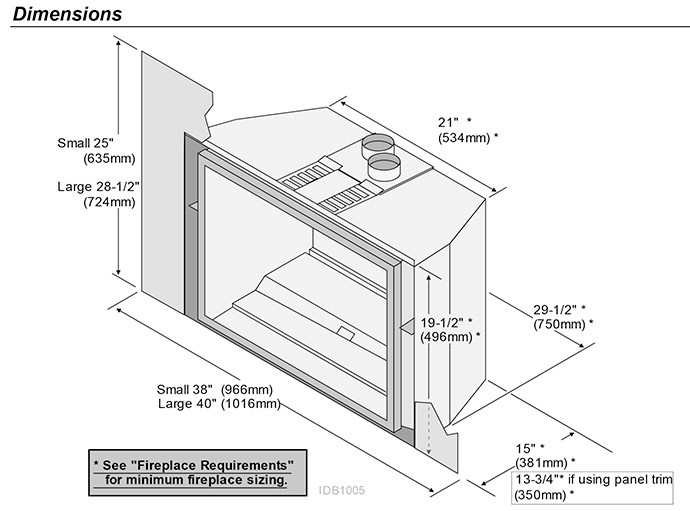

Installation & Dimension Drawings
