616 Deluxe Ember-Glo™

The 616 is an excellent heater and beautiful focal point for larger homes and grand spaces up to 2,000 square feet. This insert features our biggest fireview, with 616 square inches of ceramic glass that extends down to the hearth. This creates a “clean face” look with minimal metal facing and a larger fireview than other inserts its size. This model has a gorgeous flame appearance and comes standard with new Ember-Glo™ ember bed lighting and your choice of Classic Oak or Birch Log Sets.

The 616 is a Deluxe insert that features a 180 CFM convection fan, top Accent Light, and the GreenSmart® Remote Control.

Specifications

Primary Specs
Heating Capacity : Up to 2,000 Sq. Ft.
Maximum BTU/HR Input : 39,000 (NG/LP)
Minimum BTU/HR Input : 12,000 (NG) 9,000 (LP)
Glass Viewing Area : Ceramic Glass, 27-1/2″ W x 19-3/4″ H, 542 Sq. In.
Dimensions : 23-5/16” H, 34” W (Front), 24” W (Back), 16”
Additional Specs
Steady State Efficiency (High) : Up to 84.94% (NG), 86.75% (LP)
P4 Canadian Efficiency : 71.19%(NG), 73.04% (LP)
EnerGuide Efficiency Rating : 70.92% (NG), 72.97% (LP)

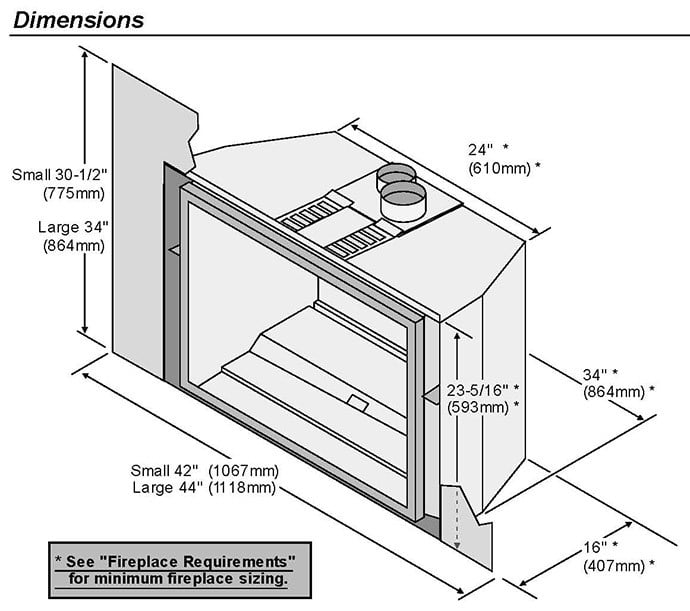

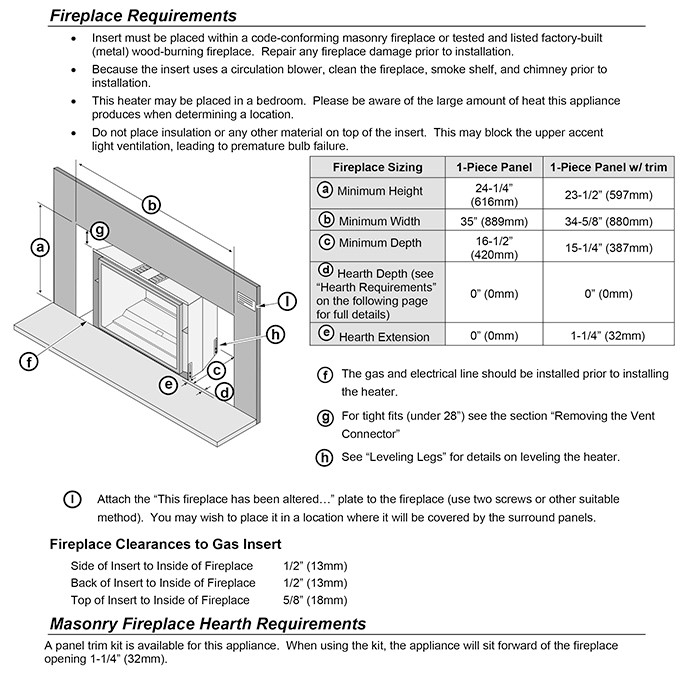

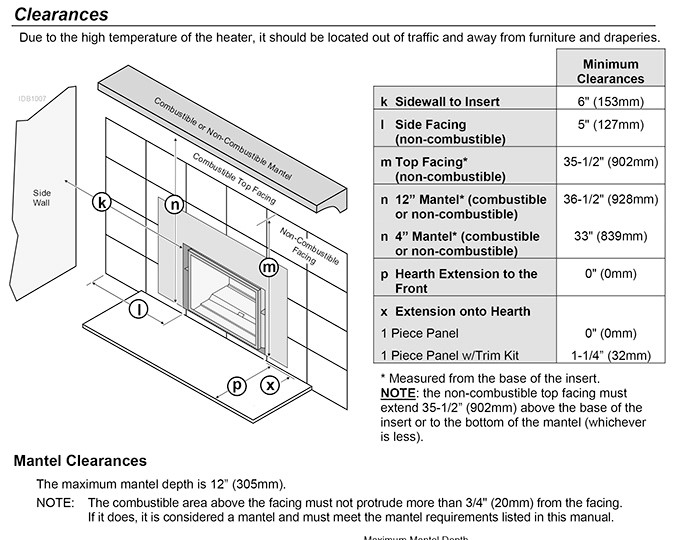

Installation & Dimension Drawings
