ProBuilder 54 Linear Basic – MV

The ProBuilder 54 Linear features 54” wide by 15” tall glass and is a perfect economical choice for zone heating mid-size to larger entertaining spaces up to 1,650 square feet. This Millivolt (MV) model is a great choice for anyone who desired a simple heat source that does not require power for installation and operation, as it features a Continuous Pilot system where the pilot flame stays lit at all times.


Primary Specs
Heating Capacity : Up to 1,650 Sq. Ft.
BTU Input Per Hour : 17,000 to 33,000 (50% turndown)
Weight : 210 lbs. (95 kg)
Additional Specs
Steady State Efficiency : Up to 67.25% (NG) Up to 76.02% (LP)
P4 Efficiency : 65.11% (NG) 66.3% (LP)
Glass Viewing Area : Tempered Glass, 52-3/8” W x 13-5/8” H, 711 Sq. In.

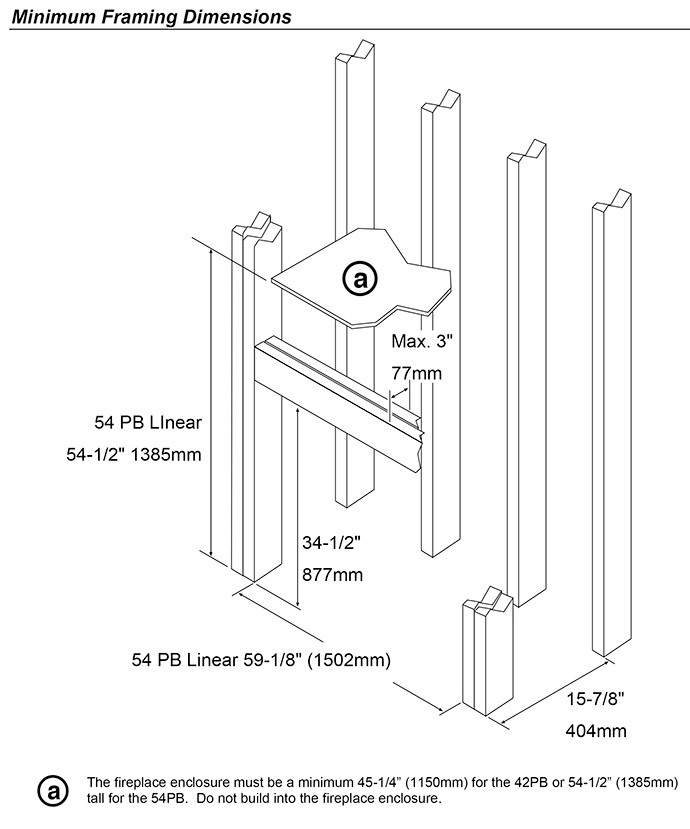

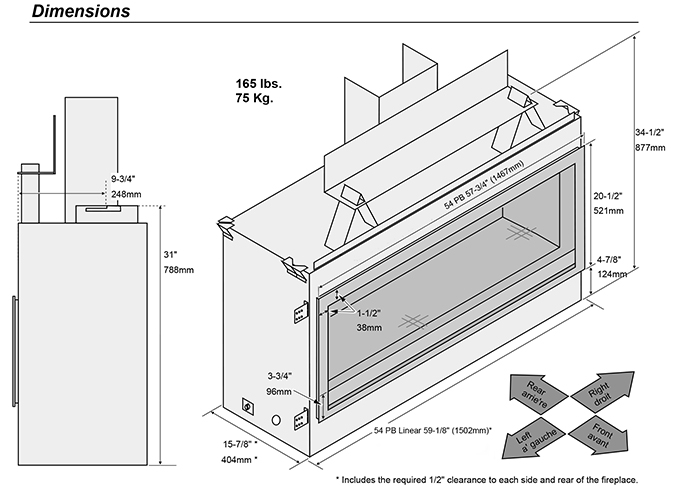

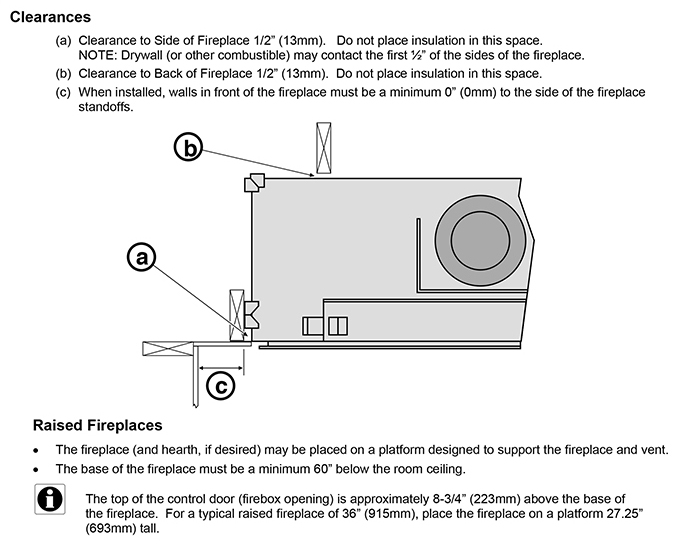

Dimension and Install Drawings
