ProBuilder 72 Linear Basic – MV

Large spaces ready for a dynamic statement are perfectly suited for the impressive ProBuilder 72 Linear. As the biggest model in our lineup, this model features 72” wide by 15” tall glass and excellent zonal heat at a valued price, without compromising quality or beauty. This Millivolt (MV) model is a great choice for anyone who desired a simple heat source that does not require power for installation and operation, as it features a Continuous Pilot system where the pilot flame stays lit at all times.

Specifications

Primary Specs
Heating Capacity : Up to 2,250 Sq. Ft.
BTU Input Per Hour : 23,000 to 45,000 (50% turndown)
Weight : 275 lbs. (125 kg)
Additional Specs
Steady State Efficiency : Up to 73.34 (NG) Up to 75.80 (LP)
P4 Efficiency : 67.39% (NG) 65.73% (LP)
Glass Viewing Area : Tempered Glass, 70-3/8” W x 13-5/8” H, 956 Sq. In.

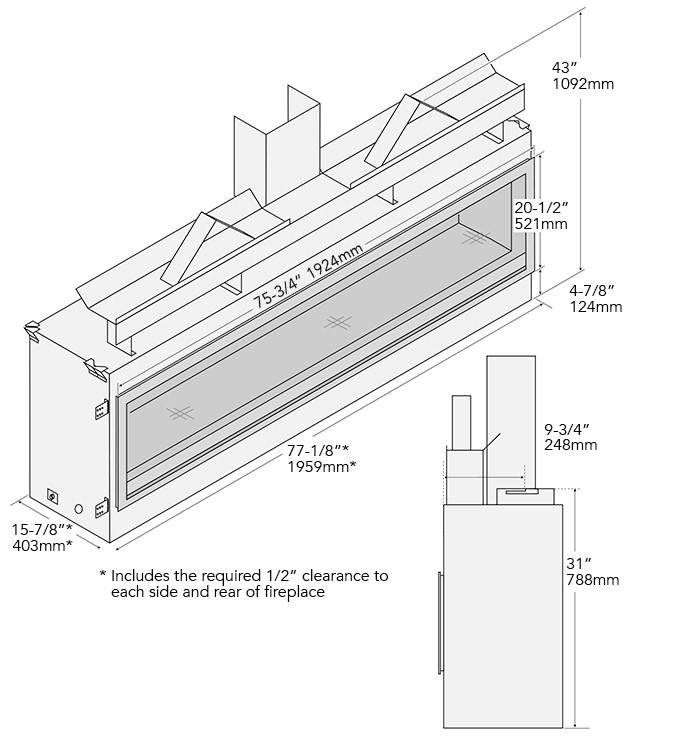

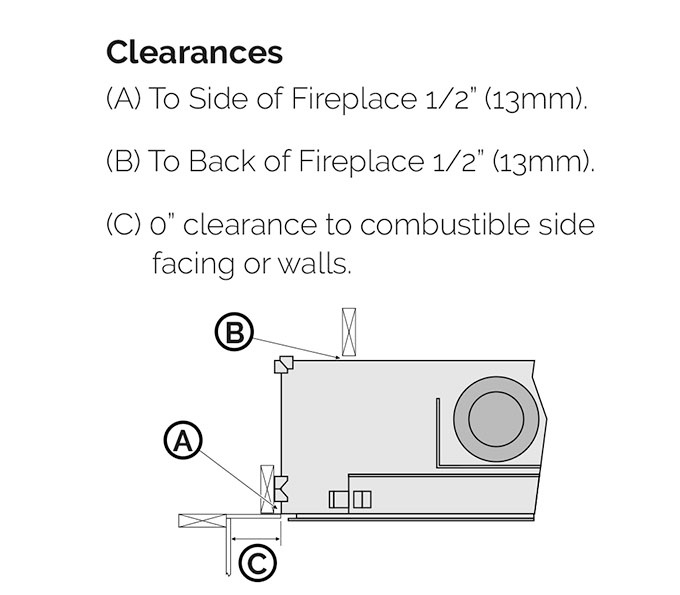

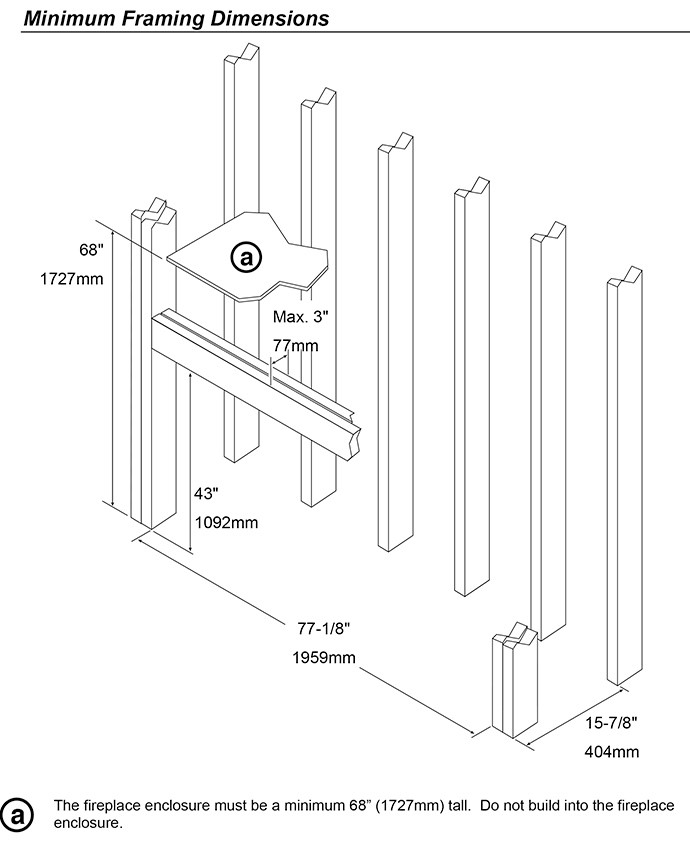

Dimension and Install Drawings
