Deerfield™

The Deerfield is the QUIETEST and SIMPLEST pellet stove to operate and live with! The Deerfield combines beautiful European castings with next generation technology and optimum performance to bring you a revolutionary, ‘best-in-class’ pellet stove. Super quiet operation is achieved from a unique cast Ultra Iron Fan and sound dampening components. Our award-winning TouchSmart Control Panel is seamlessly integrated into the glass fuel loading door and is very user-friendly. This stove is designed to burn all grades of wood pellet fuel and features a large 60-lb. hopper for long burn times between refueling.

Specifications

Primary Specs
Heating Capacity : Up to 2,500 square feet
EPA Tested BTU Output : 10,916 – 35,779 BTUs per hour
EPA Tested BTU Input : 13,940 – 49,200 BTUs per hour
Maximum Burn Time : Up to 35 hours
Overall Efficiency : Up to 77%
Glass Viewing Area : Ceramic Glass, 16-3/4″ W x 10-3/8″ H, 165 Sq. In.
Emissions : 1.2 Grams/Hr.
Burn Rate : 1.7 to 6 Pounds Per Hour
Venting : 3″

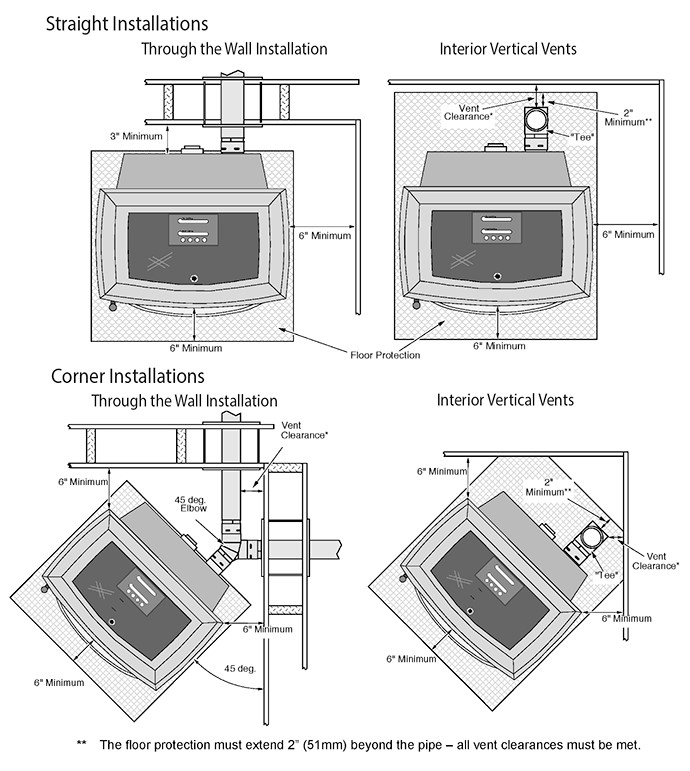

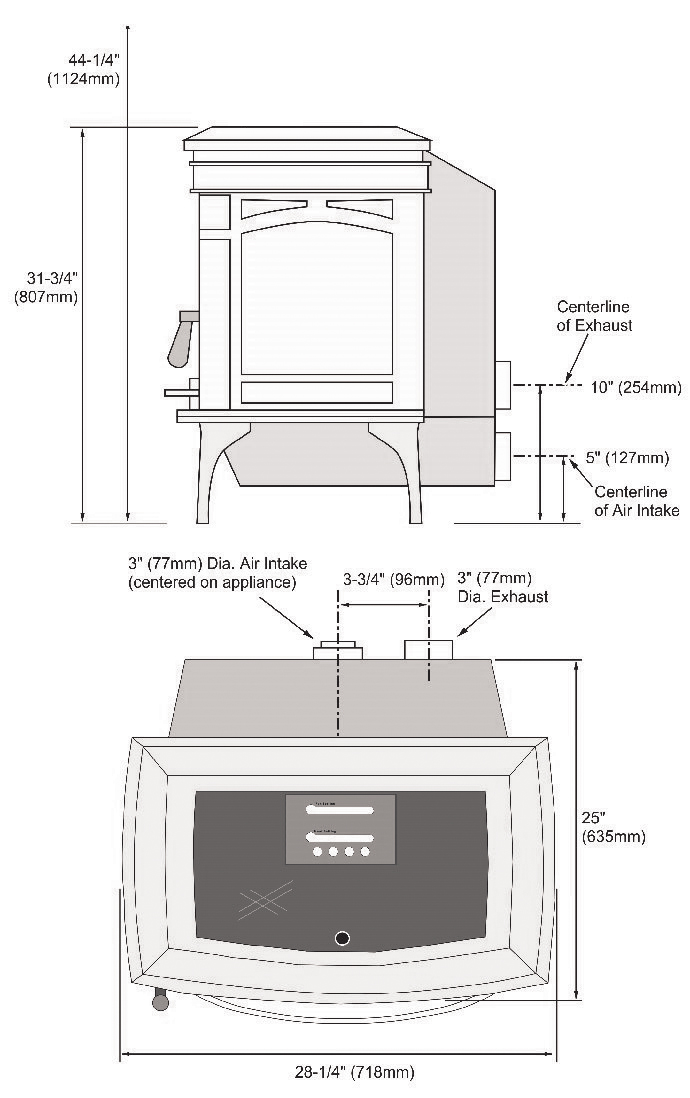

Installation & Dimension Drawings
