42 Apex

The 42 Apex is a natural convection wood fireplace that features state-of-the-art catalytic technology. This model delivers high performance, clean-burning heat, while showcasing a spectacular fireview through its massive rectangular door. Designed to be flexible for all installation applications, the 42 Apex is the perfect choice for remodels and new home construction, as its simple installation parameters allow this fireplace to be featured anywhere in your home, including interior walls! This model features the In-Wall Control Center, optional GreenStart Igniter and our selection of sleek rectangular designer faces.

Specifications

Primary Specs
Heating Capacity : Up to 2,500 Sq. Ft.
Maximum Burn Time : Up to 12 Hrs.
EPA Tested BTU Range : 13,537 to 49,626
Glass Viewing Area : Ceramic Glass, 25-5/8″ W x 12-7/8″ H, 328.7 Sq. In.
Log Length : 24”
Additional Specs
Emissions : 0.93 Grams/Hr. (Cord wood)
LHV Overall Efficiency : Up to 79%
HHV Overall Efficiency : Up to 73%
Firebox : 3.5 Cubic Ft.

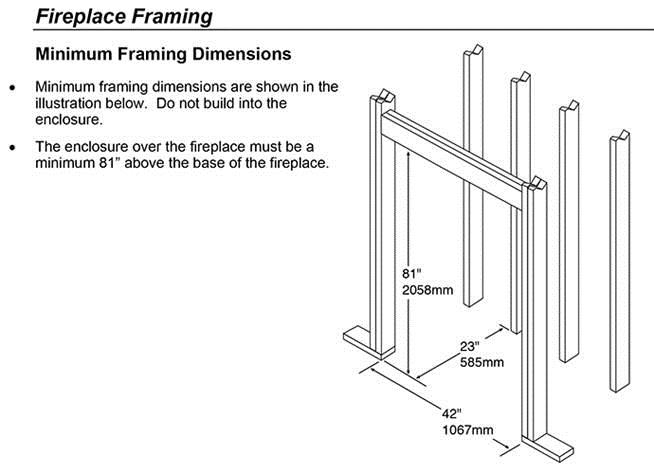

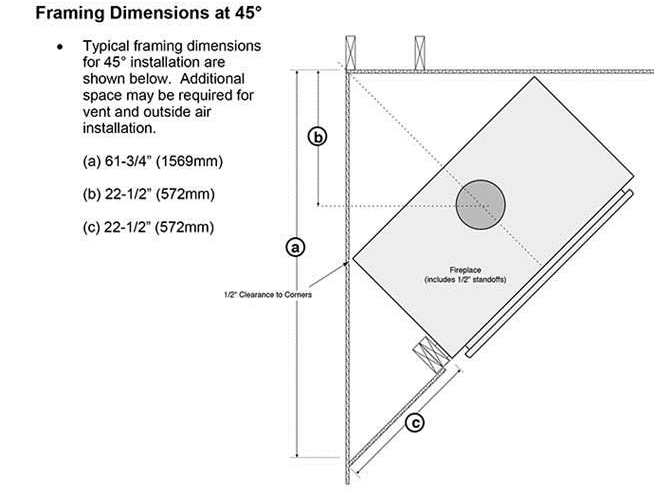

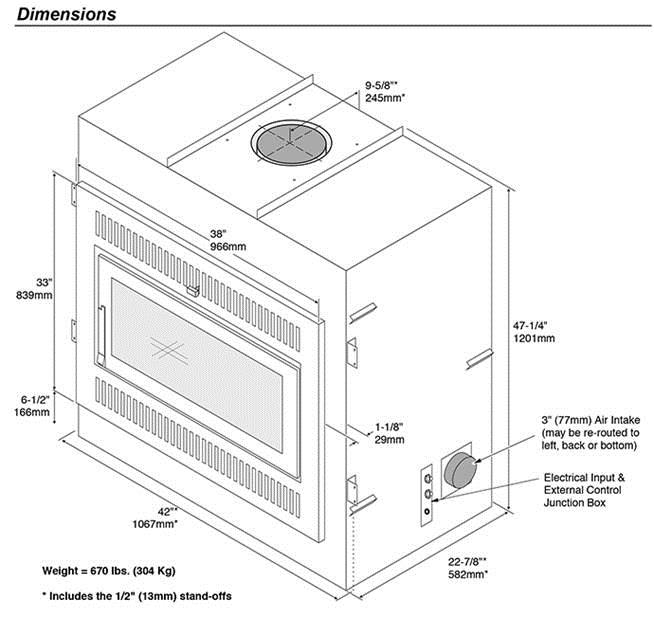

Installation & Dimension Drawings
