Endeavor NexGen-Fyre™

The Endeavor NexGen-Fyre™ is a true ‘best in class’ stove because it combines form and function with an unbeatable heat transfer system. This best-selling stove is ideal for heating medium to large homes and is one of the cleanest burning mid-sized wood stoves available. The Endeavor features a massive door and viewing area, bypass damper that allows for easy startups and reloading, and an easy-glide ash pan for quick cleanup.

The Endeavor features our revolutionary GreenStartTM option for the modern wood burner; just load your wood and push a button! We’ve completely eliminated slow, cracked open door startups and laboring over fickle newspaper.

Specifications

Primary Specs
Heating Capacity : Up to 2,000 square feet
Overall Efficiency (LHV) : Up to 80%
Overall Efficiency (HHV) : Up to 74%
EPA Tested BTUs : 12,114 to 67,090 BTUs
Maximum Burn Time : Up to 10 Hours
Firebox Size : 2.5 Cubic Feet
Glass Viewing Area : Ceramic Glass, 15-1/4” W x 11-1/4” H, 165 Sq. In.
Weight : 448 lbs (203 kg.)
Emissions : 1.4 Grams Per Hour
Additional Specs
Maximum Log Size : 18”
Construction : 5/16” to 3/16” Steel Plate

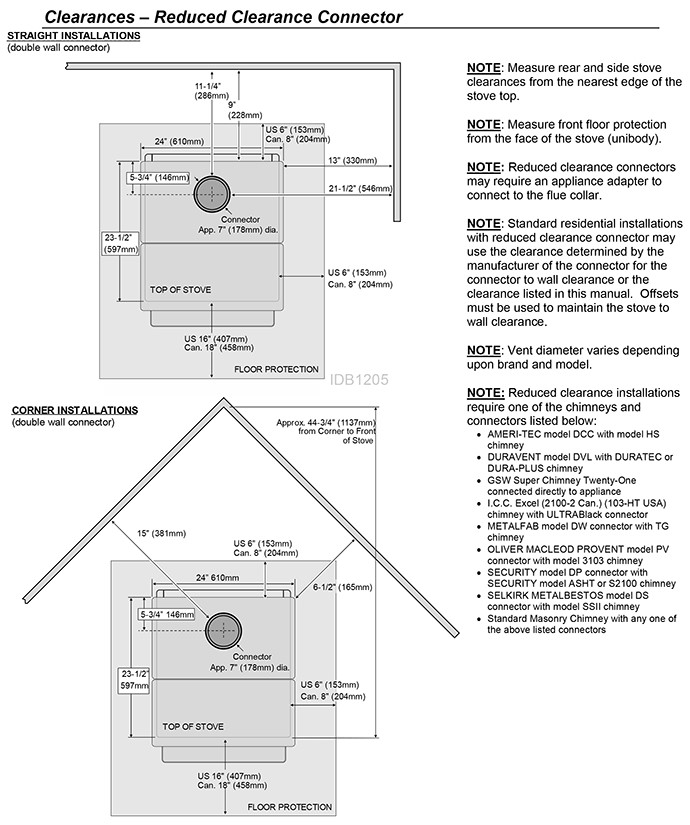

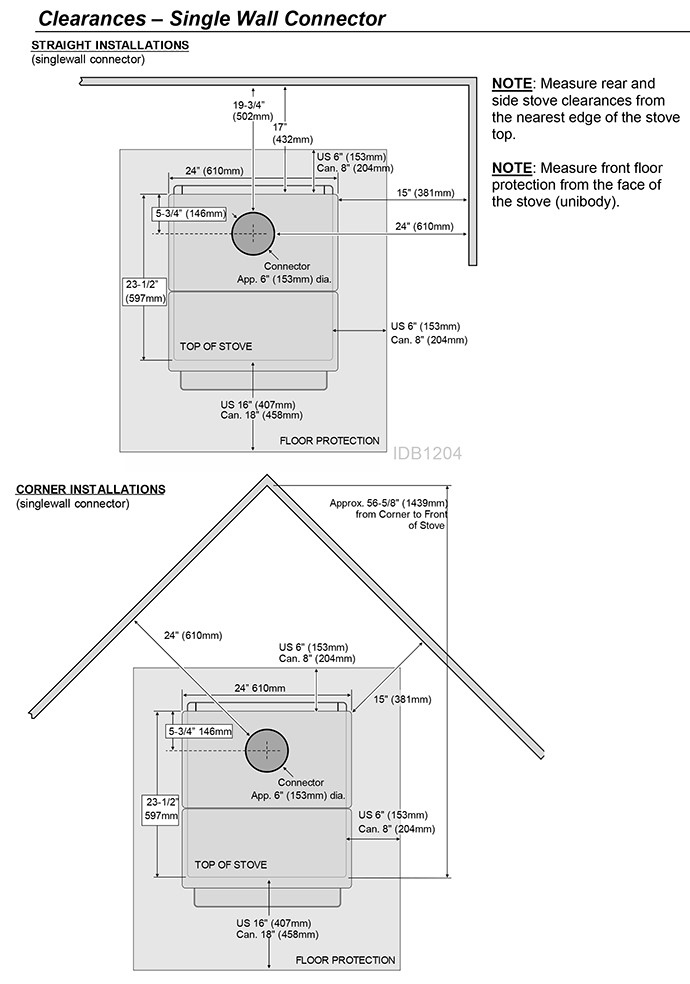

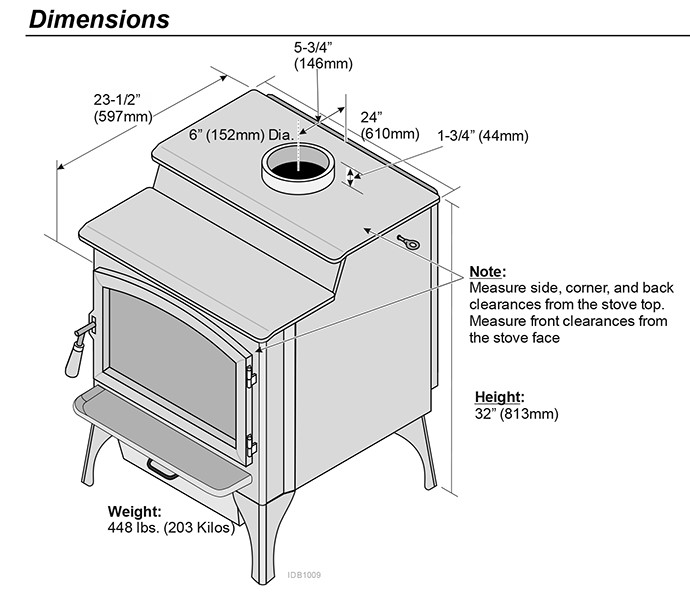

Installation & Dimension Drawings
