Liberty NexGen-Fyre™

The Liberty™ is a large stove made for heating large homes and living spaces. At only 2.5 grams of emissions per hour, it is one of the cleanest burning large stoves approved by the EPA. The huge firebox and fire viewing area allow you to load wood up to 24” long and fully appreciate the splendor of the fire. It also features a single control to adjust air flow, making it easy to achieve burn times up to 12 hours. This stove comes standard with a bypass damper and easy-glide ash pan. The Liberty’s step-top design is enchanting yet functional, providing cooking and warming surfaces as well as radiant and convective heat.

The Liberty™ features our revolutionary GreenStartTM option for the modern wood burner; just load your wood and push a button! We’ve completely eliminated slow, cracked open door startups and laboring over fickle newspaper.

Specifications

Primary Specs
Heating Capacity : Up to 2,500 square feet
Overall Efficiency (LHV) : Up to 75%
Overall Efficiency (HHV) : Up to 70%
EPA Tested BTUs : 15,155 to 63,239 BTUs
Maximum Burn Time : Up to 12 Hours
Firebox Size : 3.65 Cubic Feet
Glass Viewing Area : Ceramic Glass, 21-1/8” W x 11-5/8” H, 232 Sq. In.
Weight : 570 lbs (256 kg.)
Emissions : 2.5 Grams Per Hour
Additional Specs
Maximum Log Size : 24”
Construction : 5/16” to 3/16” Steel Plate

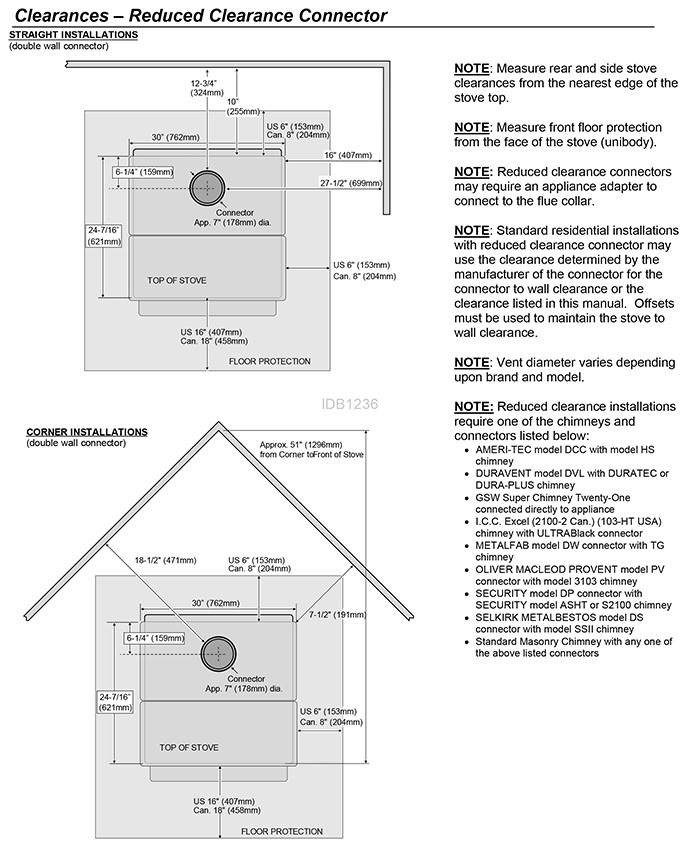

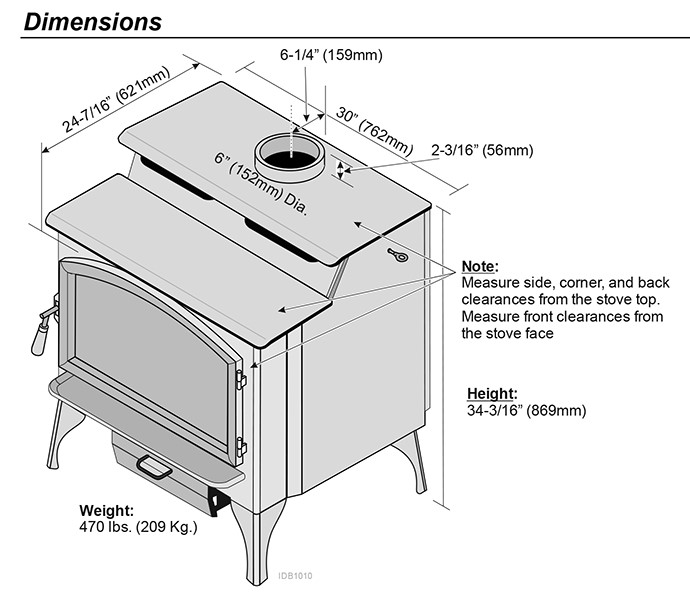

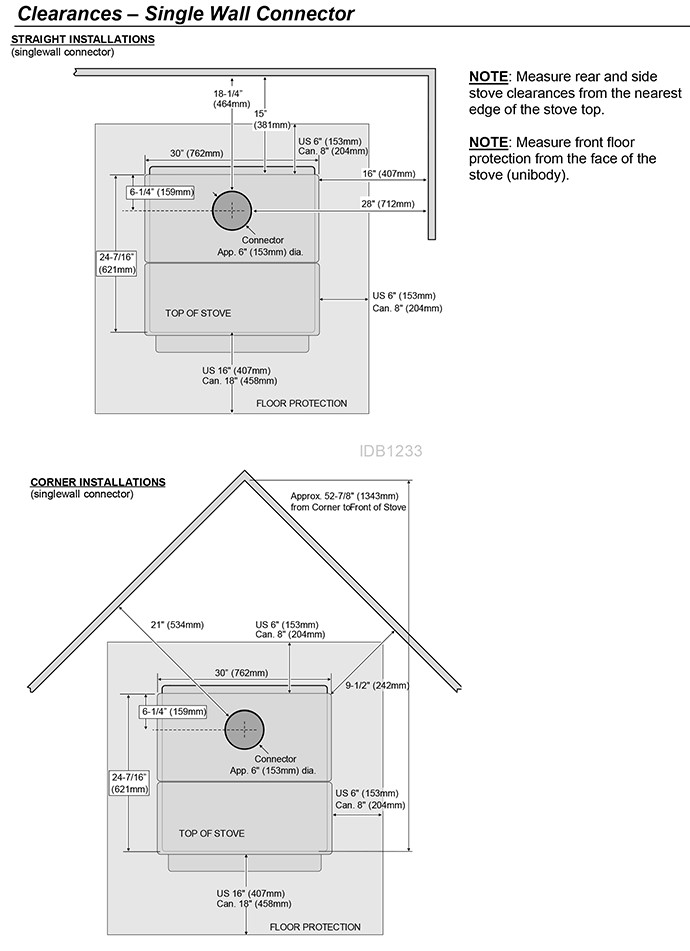

Installation & Dimension Drawings
