Medium Flush Rectangular NexGen-Fyre™

The Medium Flush Wood NexGen-Fyre™ Insert converts a wasteful masonry or zero clearance fireplace into an excellent heat source that can provide reliable warmth at a fraction of the cost of electricity or oil. With a three-sided convection chamber and standard 180 CFM convection fan, this insert is designed to deliver the maximum heat output from the wood you burn due to our advanced NexGen-Fyre™ technology. This insert features a sleek, flush design and is created out of the highest quality materials to last for years to come. This model features a signature rectangular door and face design.

The Medium Flush NexGen-Fyre™ is available with the GreenStart® patent-pending ignition system for the modern wood burner; just load your wood and push a button! We’ve completely eliminated slow, cracked open door startups and laboring over fickle newspaper.

Specifications

Primary Specs
Heating Capacity : Up to 2,000 Sq. Ft.
Maximum Burn Time : Up to 10 Hrs
Maximum BTUs : Up to 55,395 (Burn on high)
Glass Viewing Area : 22 1/2” W x 10” H, 215.6 Sq. In.
Log Length : 24”
Additional Specs
Emissions : 2.45 grams/particulate per hour (Cord Wood)
LHV Overall Efficiency : Up to 78%
HHV Overall Efficiency : Up to 72%
Firebox : 2.2 Cubic Foot

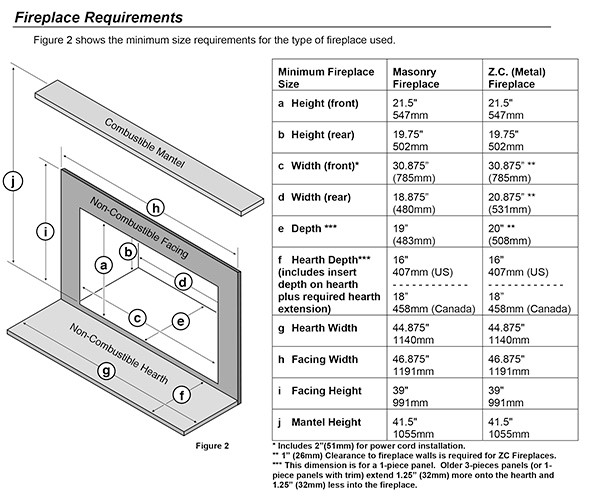

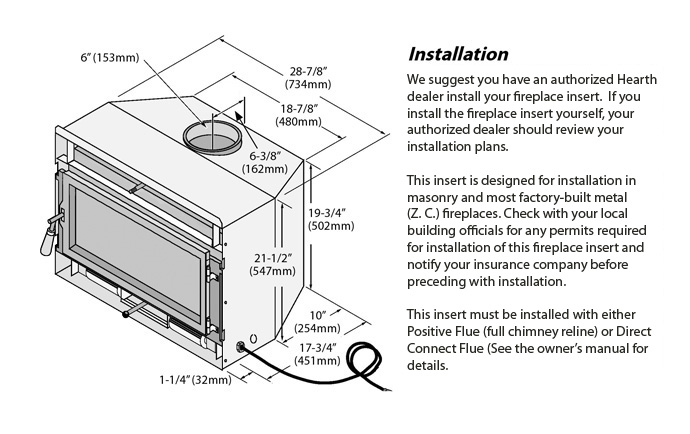

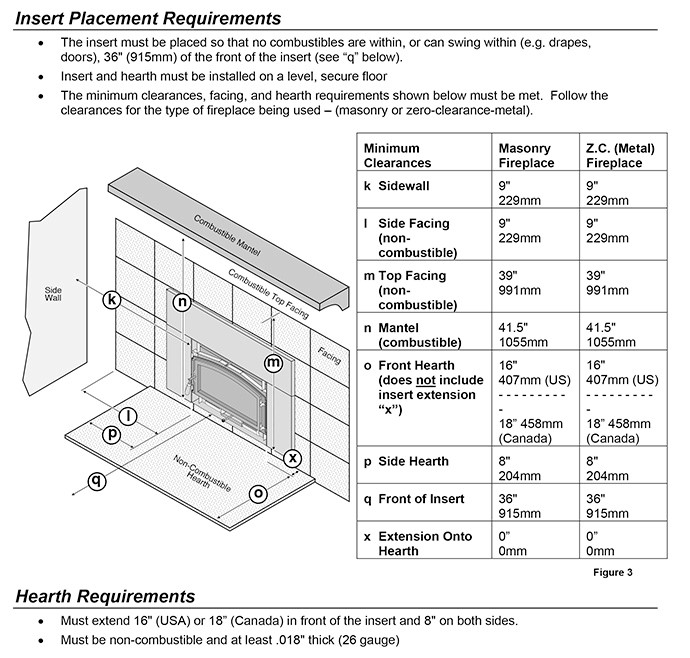

Installation & Dimension Drawings
