Medium Flush Wood NexGen-Fyre™ Arch

The Medium Flush Wood NexGen-Fyre™ Insert converts a wasteful masonry or zero clearance fireplace into an excellent heat source that can provide reliable warmth at a fraction of the cost of electricity or oil. With a three-sided convection chamber and standard 180 CFM convection fan, this insert is designed to deliver the maximum heat output from the wood you burn due to our advanced NexGen-Fyre™ technology. This insert features a sleek, flush design and is created out of the highest quality materials to last for years to come. This model features a signature arched door and face design.

The Medium Flush NexGen-Fyre™ is available with the GreenStart® patent-pending ignition system for the modern wood burner; just load your wood and push a button! We’ve completely eliminated slow, cracked open door startups and laboring over fickle newspaper.

Specifications

Primary Specs
Heating Capacity : Up to 2,000 Square Feet
Overall Efficiency (LHV) : Up to 78%
Overall Efficiency (HHV) : Up to 72%
EPA Tested BTUs : 15,853 to 55,395 (CORD WOOD)
Maximum Burn Time : Up to 10 Hours
Firebox Size : 2.2 Cubic Feet
Glass Viewing Area : Ceramic Glass, 22-1/2” W x 10” H, 215.6 Sq. In.
Weight : 450lbs (204 kg.)
Emissions : 2.45 Grams Per Hour (CORD WOOD)
Additional Specs
Maximum Log Size : 24”
Construction : 5/16” to 1/4” Steel Plate

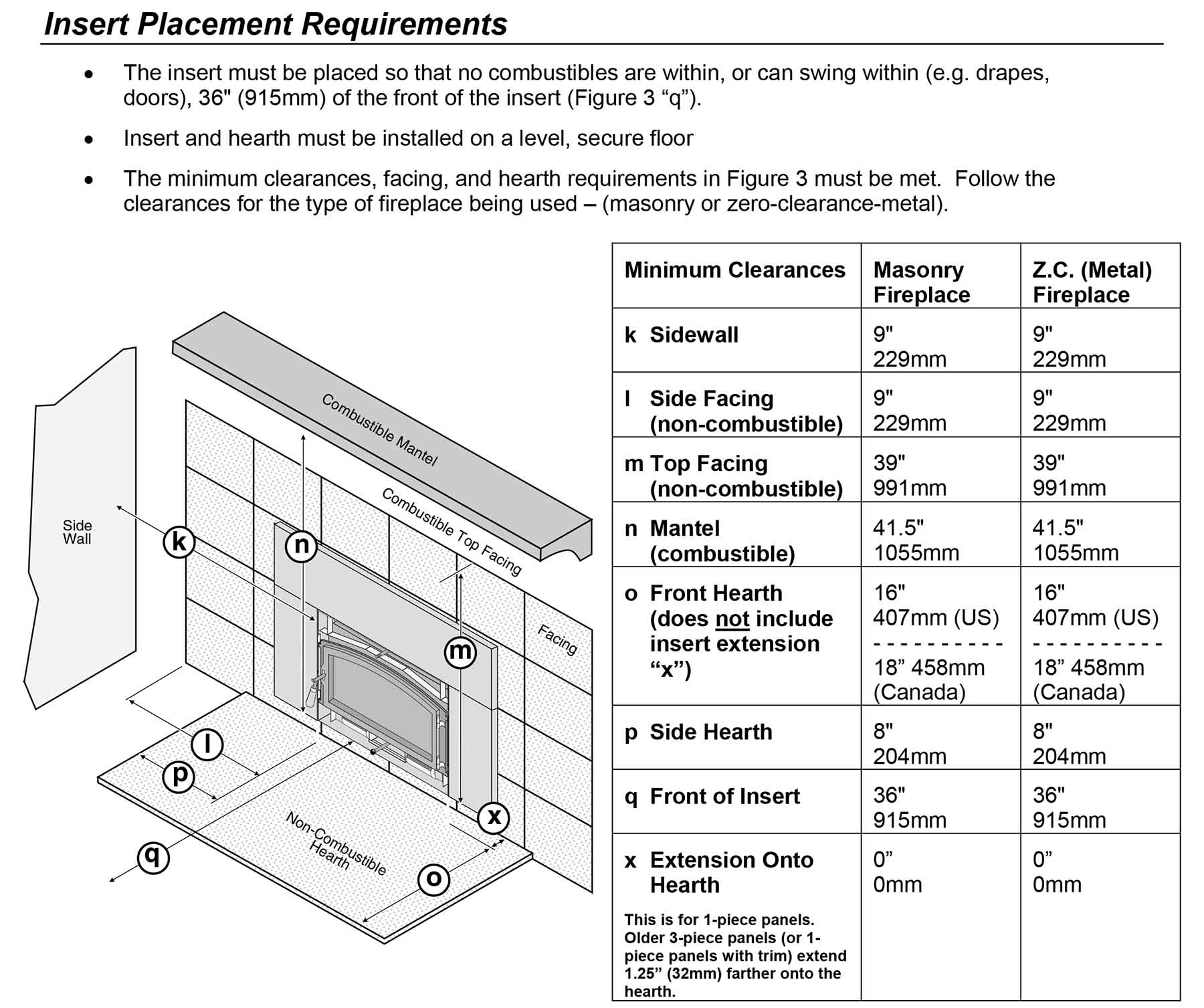

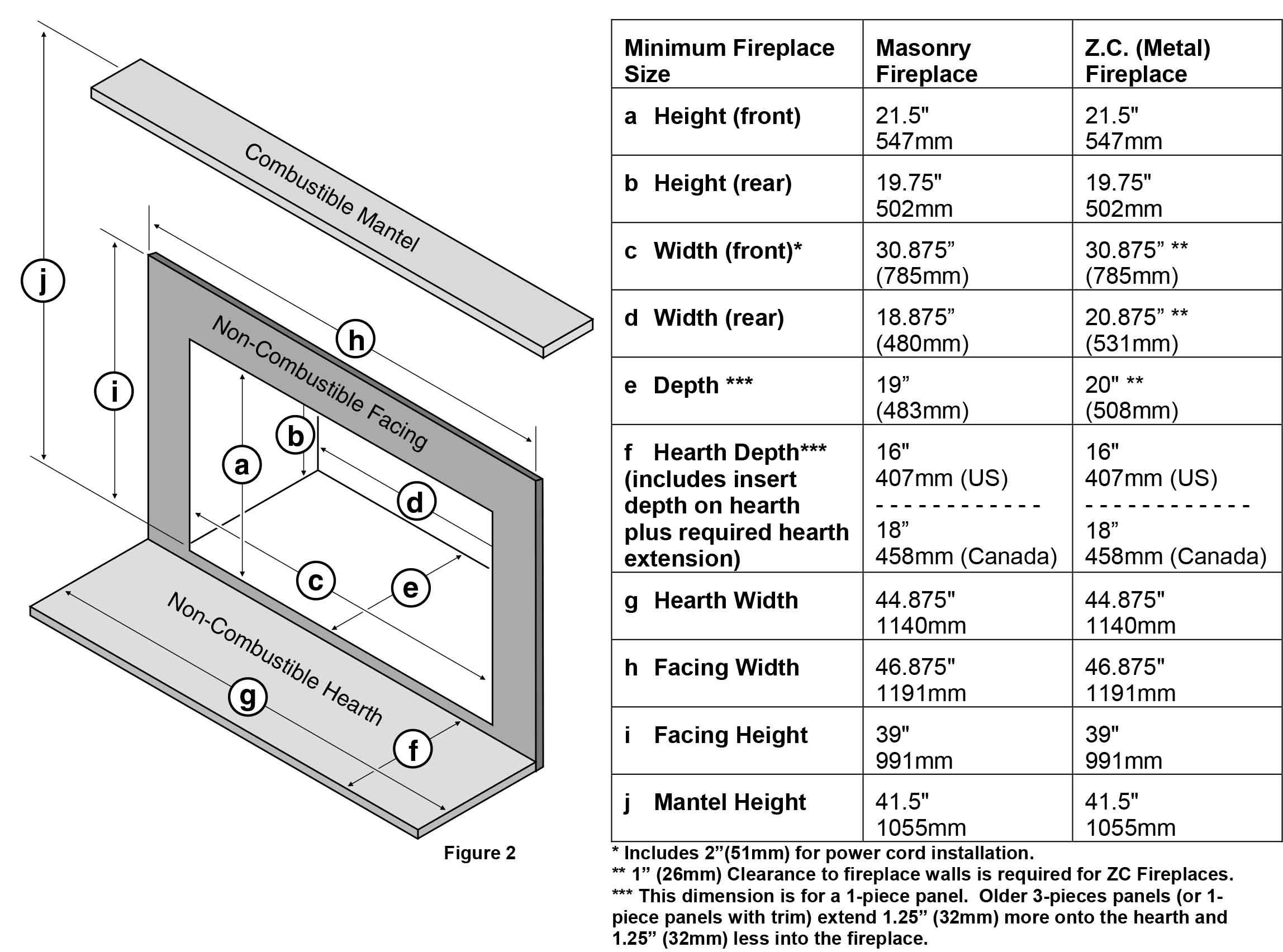

Installation & Dimension Drawings
